PUMPS

Design

1-4 Pump Pressure-Boosting Systems

Application

For use in water supply applications requiring constant pressure, such as:

• Water Supply

• Pressure Boosting

• Agriculture

• Washing / Sprinkling Systems

• Cooling Circuits

• Condensate Return

Max. Flow: 1600 GPM

Max. Head: 580 feet

Equipment/function

• Real-time diagnostics and remotemonitoring

• Full system kWh energy reporting

• Easy to use 7" touchscreen interface

• Onboard Modbus and optional BACnet™,LonWorks® interface

• Variable speed control per pump

• Adjustable low pressure cut-outƒ Balanced run time for all pumps

Max. flow: 400 gpm

Max. head: 800 feet (345psi)

Applications

• Water supply and pressure boosting
• Industrial circulation systems
• Process water
• Cooling water circuits
• Fire protection systems
• Washing stations
• Irrigation systems

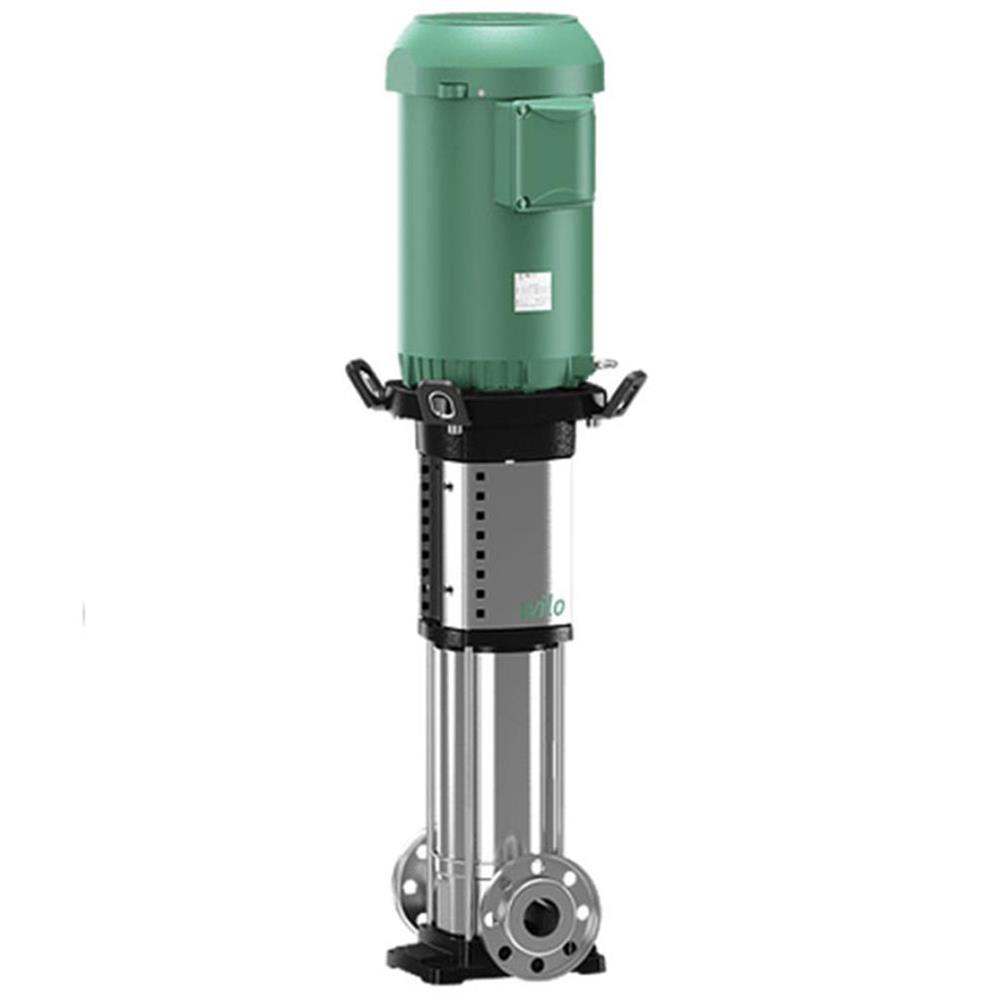

Benefits

• 2D/3D laser-welded, efficiency-optimized hydraulics
• Standard IE2 IEC, 3-phase, 2-pole motor (IE3 motor on request)
• Thanks to their modular body (height and flange are adaptable), Helix pumps can be installed in existing piping systems.
• Helix V 22-52: Pressure sensor connections in the pump body enable simple monitoring and control of pump operation (optional for standard version, and included in versions for aggressive fluids).
• The entire Helix range is available with an X-Seal cartridge mechanical seal (with standard gasket) for fast, easy maintenance.
• Removable coupling (from 7.5 kW) enables mechanical seal replacement without motor removal
• The default position of the terminal box is oriented towards the suction flange. However, this can be changed if required.
• Intermediate bearings (Al203/CW) ensure long service life
• Corrosion-resistant shaft thanks to stainless steel bushing
• WRAS/ACS approval for all wetted parts

Technical data

• Electrical connection: 3~575 V (±10%), 60 Hz
• Protection class: IP 55
• Max. ambient temperature: +40°C (extended temperature ranges on request)
• Available versions:
• Helix V 2 - 16: PN 16 with oval flanges and PN 25 with round flanges in accordance with ISO 2531 and ISO 7005
• Helix V 22 - 52: PN 16 and PN 25 with round flanges to ISO 2531 and ISO 7005

Applications

•  Water supply and pressure boosting
•  Industrial circulation systems
•  Process water
•  Cooling water circulation systems
•  Washing systems
•  Irrigation
•

Max Flow: 800 GPM

Max Head: 950 feet

Technical Data

•  NSF/ANSI 372 and 61 certified
•  Power connections: 1~115/230 V 3~ 230/460/575 V
•  Fluid temperature range determined by liquid type
•  Ambient temperature: 5°F to 104°F
•  Max. operating pressure: 145 PSI, 232 PSI, 363 PSI and 435 PSI (depending on number of stages)

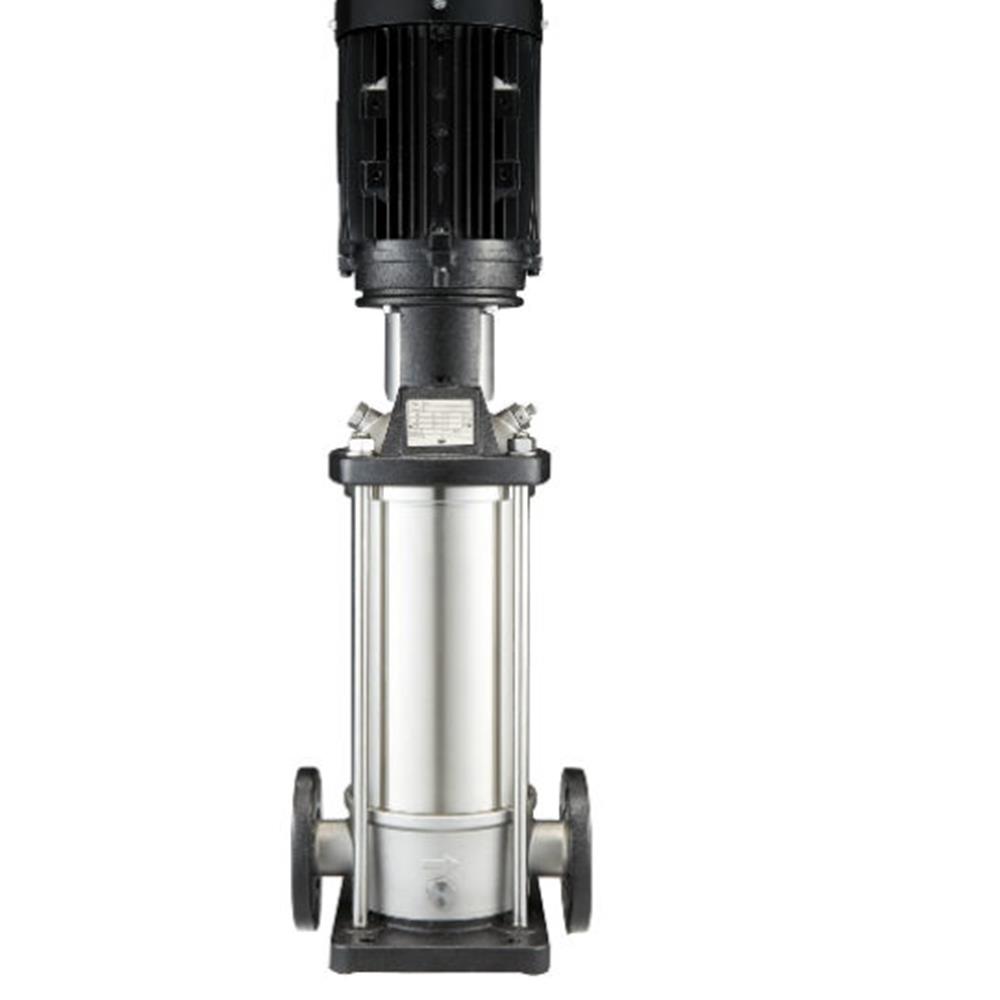

Features & Benefits

•  Non-self-priming, high pressure, vertical multistage centrifugal pump with inline connections.
•  The MVI is equipped with cartridge mechanical seal which enables quick and easy maintenance.
•  The spacer coupling allows the mechanical seal to be replaced without removing the motor.
•  The MVI series is also available with variable frequency drive upon request.

Materials of Construction

•  ANSI CLASS flanges connection
•  304 and 316 stainless steel construction
•  Stainless steel impellers, chambers, and casing

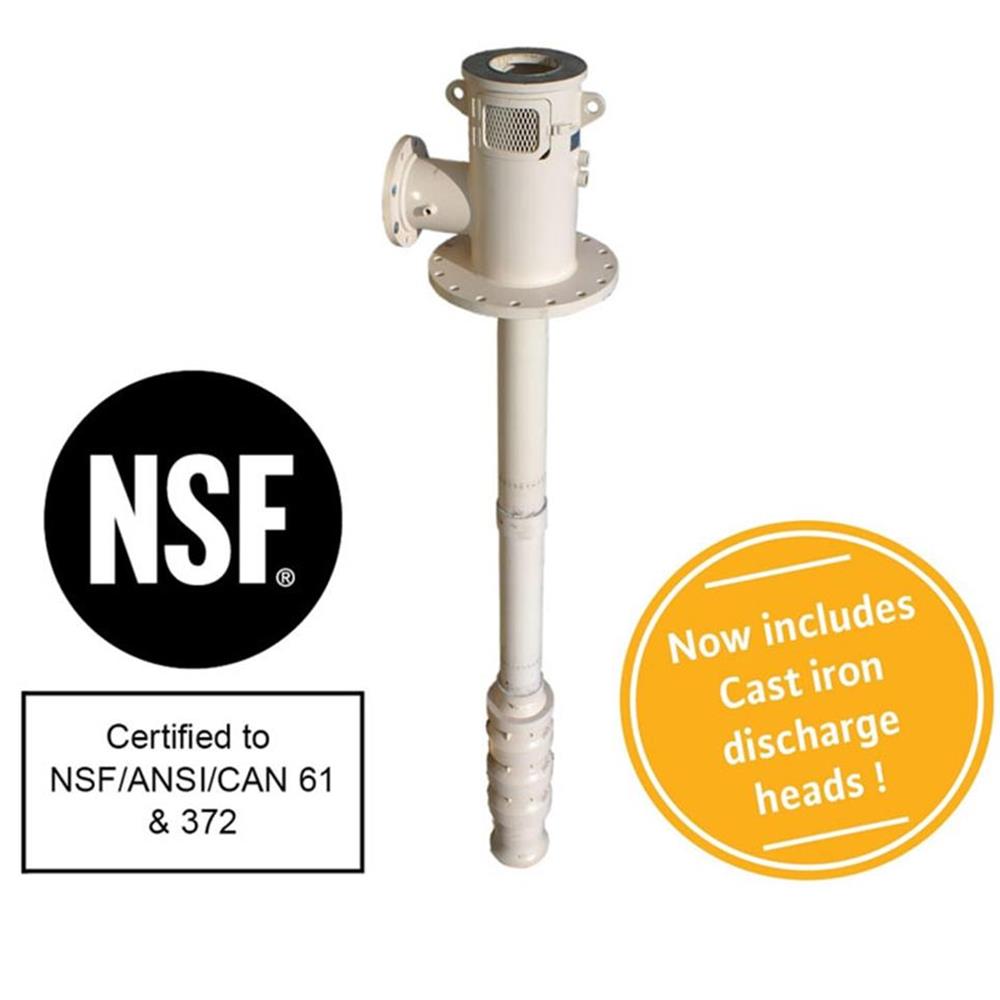

Vertical Pump

NSF Technical Data

- Max Flow: 30,000 GPM
- Max Head: 1,000 feet
- Certified to NSF/ANSI/CAN 61 & 372
- Cold (73 °F / 23 °C) water contact temperature
- Colleted impellers 6” - 15”
- Keyed impellers 16” - 42”
- Bowl sizes 6” - 42”

NSF Materials of Construction

- Lead free
- Enclosed 304 or 316 Stainless Steel impellers
- Cast Iron bowls
- Enamel lined bowls up to 16”
- Fabricated Steel & Cast Iron discharge heads

NSF Applications

- Potable Water & Water Well

NSF Features & Benefits

- Open Lineshaft design
- Packing and cartridge seal options
- Threaded column pipe up to 12”
- Flanged column pipe up to 24”
- Drop in or fabricated bearing retainers
- Threaded or keyed lineshafts up to 2-15/16”
- Optional suction can / barrel
- NSF Certified Epoxy coatings

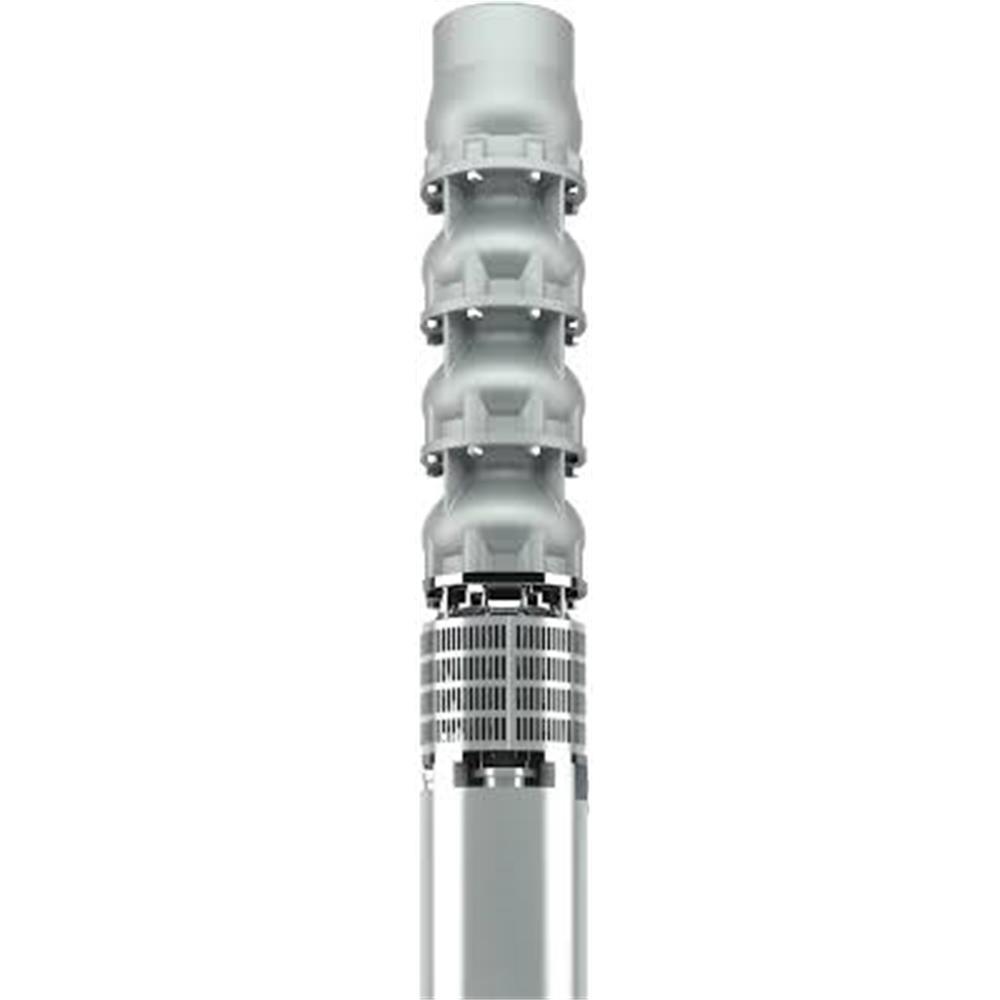

Design
Multi-stage stainless-steel investment-casting submersible pump in sectional construction for vertical and horizontal installation.

Application

• Boreholes and cisterns
• Sprinkling and irrigation
• Ground-water lowering
• Pressure boosting
• Off-shore installations
• Fire-extinguishing systems
• Geothermal energy and thermal applications
• Underground mining
• Liquid

For pumping in the following commercial areas:

Drinking water (ACS approval, motor-dependant)
Industrial water with max. sand content up to 150 g/m³

Technical data
Hydraulics

Max. volume flow: 2000 gpm
Max. delivery head: 2100 feet
Max. fluid temperature: 50 °C

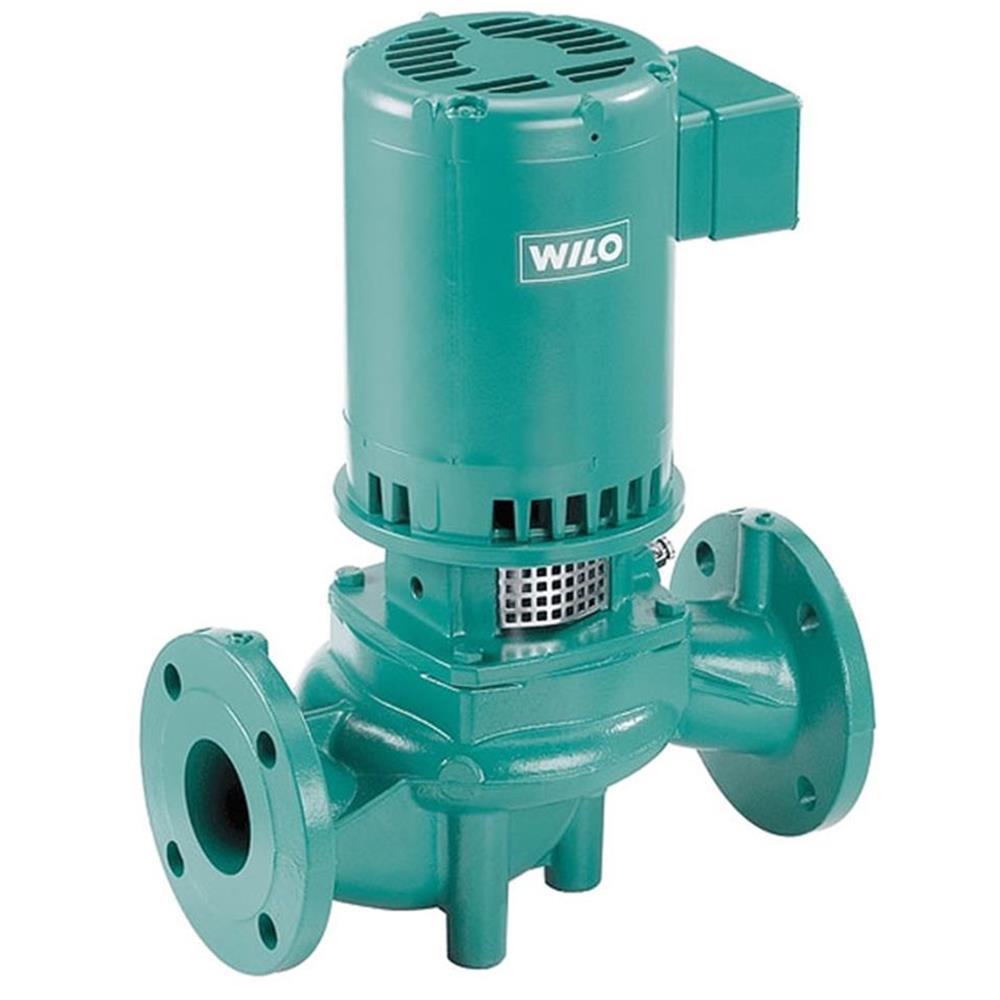

Design

Glanded pump in in-line design with screwed connection or flange connection

Application

Pumping of heating water (acc. to VDI 2035), chilled water and water/glycol mixtures without abrasive substances in heating, chilled water and cooling systems.

Materials

• Pump housing and lantern: EN-GJL-250
• Impeller: PPO fibreglass-reinforced EN-GJL-200 (depending on pump type)
• Shaft: 1.4021
• Mechanical seal: AQEGG; other mechanical seals on request

Construction

Single-stage, low-pressure centrifugal pump in in-line design with

• Mechanical seal
• Flange connection with pressure measuring connection R ¹/8
• Motor with one-piece shaft

Technical Data

- Max Flow: 9,000 GPM
- Max Head: 450 feet
- Temperature up to 180°F
- Discharge sizes: 2"-12"

Features & Benefits

- Back pull-out design
- Replaceable case wear rings
- Internal plan 1 seal flush
- CL 250 cast flanges drilled to CL 125
- Centerline discharge
- Integral feet on casing
- Suction & discharge flanges drilled & tapped for gauges
- REI close-coupled utilize standard C-face T-frame motors

Materials of Construction

- Cast Iron
- Stainless Steel fitted
- 810 Component seal

Applications

- Agriculture & Irrigation
- Commercial
- Industrial
- Municipal
- Circulation
- Booster
- HVAC

Group Features

•  5.63" Impeller
•  3500 RPM
•  J56, TC Frame

Technical Data

•  .5 to 15 HP
•  3500 RPM, 60 Hz
•  Capacity to 450 GPM
•  125 ft head
•  5.63" Max. impeller
•  150 PSI Max. working pressure on J56 frame models 175 Max. working pressure on TC frame models
• NPT Connections
•  316 Stainless Steel wetted components
•  Viton Silicon Carbide Seal is standard

Applications

•  Booster Systems
•  Chillers
•  Injection Molding Cooling
•  Process Cooling Water
•  Dishwashing Equipment
•  Induction Heating Cooling Water
•  Potable Water

Max. Flow: 325 GPM

Max. Head: 175 feet

Features & Benefits

•  NSF/ANSI 61 & 372 certification pending
•  Up to 3 HP and 2” Discharge
•  Cast Iron Adapter supports seal and prevents flexing of pump
•  Close-coupled, Back pull-out design
•  Mechanical Seal

Application

• Heating and Cooling systems
• Air Conditioning
• Municipal Water Supply
• Pressure Boosting
• Raw Water Intake
• Irrigation/Agriculture
• Industrial Process

Max. Flow: 3,000 GPM

Max. Head: 475 feet

Equipment/function

• Stainless steel impeller
• High-Efficiency
• Improved Hydraulic design
• Energy Savings
• Cataphoretic coating of all cast iron components
• High corrosion resistance
• Long service life
• Easy maintenance
• C-channel construction welded base

Materials

• Stainless Steel Impeller and pump shaft
• Carbon/silicon carbide/ EPDM (E1) mechanical seal

Features & Benefits

•  Self-Priming design
•  EnginePump™ uses Honda® OHC engines
•  Pump kits (less engine) available

Application

•  Portable Utility
•  Fertilizer Transfer
•  Irrigation
•  Nurse Tank Applications

Max. Flow: 400 GPM

Max. Head: 140 feet

Technical Data

•  Suction Lift 25'
•  NEMA 60Hz J56, JM Frame
•  TEFC Motors

Materials of Construction

•  Cast Iron or Stainless Steel construction
•  Viton Carbon Ceramic Mechanical Seal
